HMI Instrument Cluster and HVAC Renderings

Volcon Stag ATV Instrument Cluster

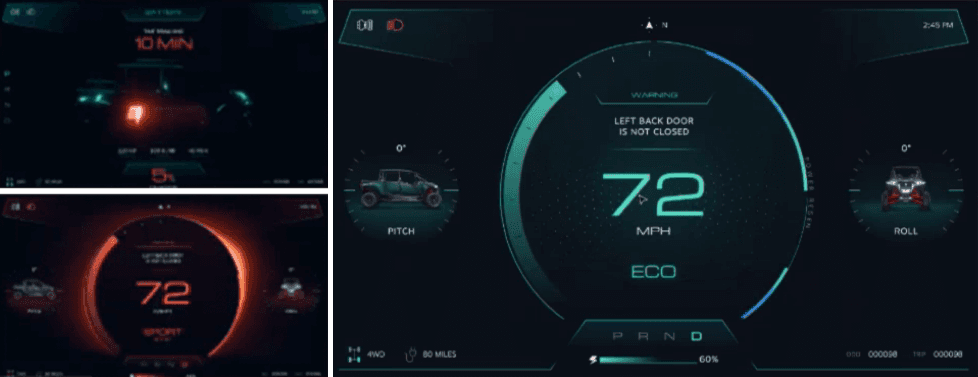

In-vehicle display for Volcon's electric side-by-side All Terrain Vehicle. Designed in parallel with the vehicle companiopn app detailed on the Volcon portfolio page.

Chevrolet Truck Cluster

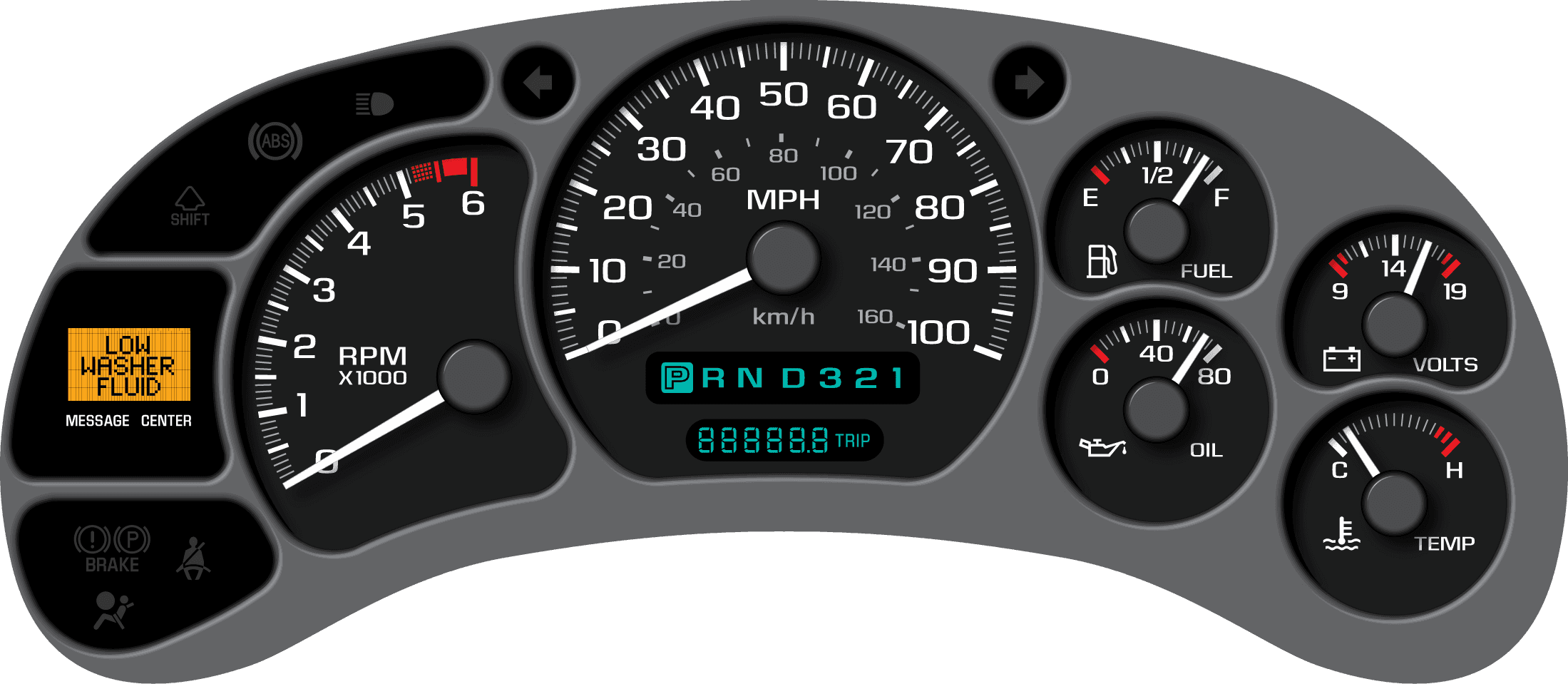

Though these images below may appear dated, they represent the starting point of my journey into digital design. As some of the earliest digital HMI graphics, they laid the foundation for my career. Over the course of a decade, I designed nearly 100 instrument clusters, radios, center-stack interfaces, and HVAC components - helping shape the evolution of in-vehicle digital experiences.

Chevrolet Malibu Cluster

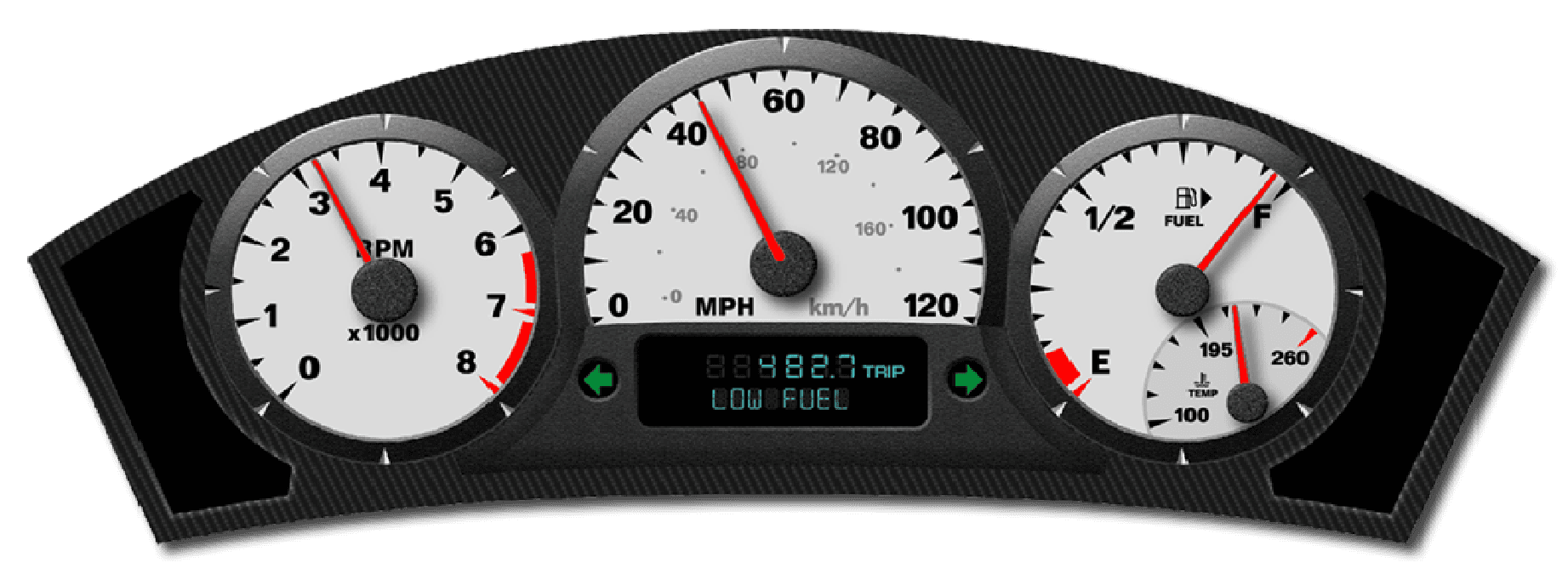

White gage faces with carbon fiber surround.

Hummer H2 Cluster

Concept design used in Detroit Auto Show vehicle.

Chevrolet Dual-zone HVAC

Production version with manual sliders for temp adjustment.

Pontiac HVAC

Production version with electronic dual-zone (top) and manual control single-zone ebony finish (bottom).
